Fluid art a palm tree

fluid art - a palm tre
By Jak harris.

https://foro3d.com/attachment.php?at...1&d=1245397967


introduction
Since the implementation of fluid simulation in Blender, y have ben fascinated by the realism produced - it just looks right. In our common experience, we expect that a liquid Will always move under the influence of all forces acting upon it, including Gravity, until it finally reaches a stable state, if posible. A very curious thing about a waterfall, for example, is that the shape of the bend (due mostly todo Momentum and Gravity) is static, while the flow is dynamic.
fluid art: the idea.
What i had not sen among the various fluid simulation demonstrations online was something like a water fountain, where water would flow upward and fall bak do, revealing a shape that water, otherwise at rest, would not have. A sophisticated fountain, y thought, would be intriguing with its increased complexity. A simple implementation of this in Blender would have:
several inflow objects.

• each one with the same vertical inflow velocity (z)
• each one with a specific horizontal inflow velocity (x and y) so that the total effect is interesting.

I decided todo use sixten inflow objects, arranged in a circle, as viewed from above, and direct the stream from each one up and toward the center. At the center, then, all streams would collide and estop moving in the horizontal direction, so that only vertical motion (down) remains.

If you visualice this, it is like a tree with a trunque and branches.
starting point: how does a simulated fluid stream behave?

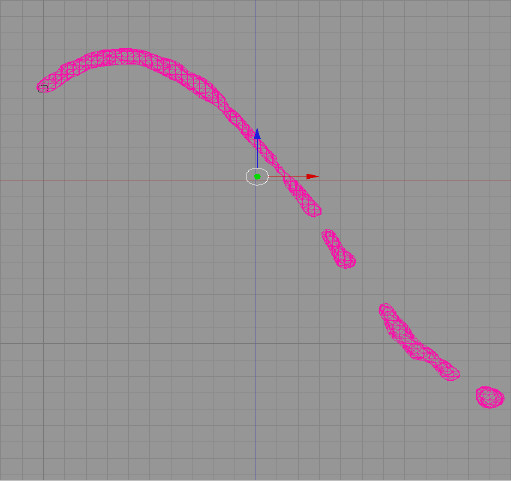

At this point, what was neded was some specific información about the distance and the shape of the stream for a given fluid velocity. I did Many experiments with one stream todo find simple values of geometry and velocity. Here is a screenshot of satisfactory results, as viewed from the side. (insert fig002.png) the inflow object was a Cube of small size todo make a narrow stream, having a z-velocity of 1 (up) and an x-velocity of 1 (positive, todo the right), and y-velocity of 0. It is important todo note two things: (1) the stream crosses the origin of the Grid, whereas later, the origin Will become the center of the circle of inflow sources; (2) the final domain resolution of the Mesh neds todo be as high as posible, i was able todo achieve 200.

https://foro3d.com/attachment.php?at...1&d=1245397967

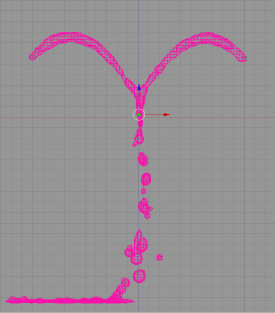

two streams collide: fluid becomes an obstacle as well.
to create a second stream, y made a mirror copy of the first stream across the origin, did the simulation and checked the result for a reasonable intersection of the two streams at the center. The two streams merged quite nicely and flowed downward at the center. The second inflow object had the same z-velocity, but with an x-velocity of minus 1 (negative, todo the left), and y-velocity of 0.

https://foro3d.com/attachment.php?at...1&d=1245397967

branching out: do the math.

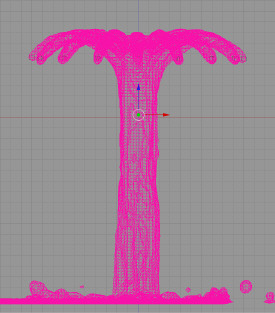

The final configuration of inflow sources was a circle of sixten cubes, equally spaced along the circumference, centered at the origin, as viewed from above. Each inflow object required calculation of the components of velocity in x and y, which i have not included here, except todo point out that the magnitude of the total horizontal velocity was equal todo 1, and the direction was toward the center. The result of baking this setup yielded the desired tree shape.

https://foro3d.com/attachment.php?at...1&d=1245397967

add some color: faq material is not easy.

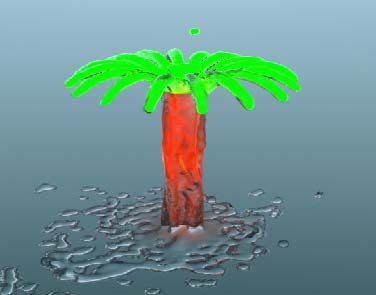

Like elaborate water fountains on display at night, the lights are part of the art. I added colored Spotlights above at strategic locations todo give green reflections on the branches, and área lights along the trunque for Brown reflections. The dificulty with this method was confining each color todo specific parts of the tre, with no overlap. To take full advantage of this lighting setup, y changed the default material settings. Under the Shader tab, y set the amount of reflection at 1, the degre of specularity at 2, and the hardness at 1.
conclusión: and a challenge.
I rendered several seconds of this simulation. Amazing. It was obvious that the effect worked. This Project has ben dificult and, at the same time, fun. What satisfies my curiosity is the god results from Blender fluid simulation function. And it is fascinating todo watch a flowing liquid form a familiar, or at least, an interesting shape. My challenge todo any Reader is todo try doing this with diferent geometries, velocities, lights, materiales, Even todo use ipo curves todo vary the fluid velocities with time. And have fun.

https://foro3d.com/attachment.php?at...1&d=1245397967

By Jak harris.
www.blenderart.org.

Jak harris (okchoir) is a retired eléctrical enginer of Northern Texas, usa, and has ben using Blender since 2004. He enjoys choir singing and reading, and is currently building a Stel-framed, retirement home.
.
