Life to a butterfly

life todo a Butterfly.

hi friends..
today we are getting into animation. Actually if you have a Little idea about coordinating diferent utilities available in 3ds Max, animation is very much easy.
we are going todo animate a Cute Butterfly using wire parameters available in 3ds Max, but first we Will model the Butterfly, its very easy let me show you how..
1.- Create a plane for the Butterfly Wing and adjust the pivot point of the plane from Hierarchy> affect pivot only like i shown below.

https://foro3d.com/attachment.php?at...1&d=1244581483
2.- We Will apply the texture using opacity mapping. I think you Will be knowing that.
3.- Mirror your Butterfly Wing from tools>mirror and create a body for your Butterfly thing using lathe or any other idea u like (i used lathing).

https://foro3d.com/attachment.php?at...1&d=1244581483
4.- Now comes the animation part, enable the auto key, change time slider todo 10 frame and rotate the left Wing slightly downwards.

https://foro3d.com/attachment.php?at...1&d=1244581483
5.- Now we are going todo loop the animation, se the picture below. Enable the curve editor from Graph editors> curve editor, select all the keys from the Graph, go todo parameter curve out-of-range type and enable the two buttons of ping pong.

https://foro3d.com/attachment.php?at...1&d=1244581483

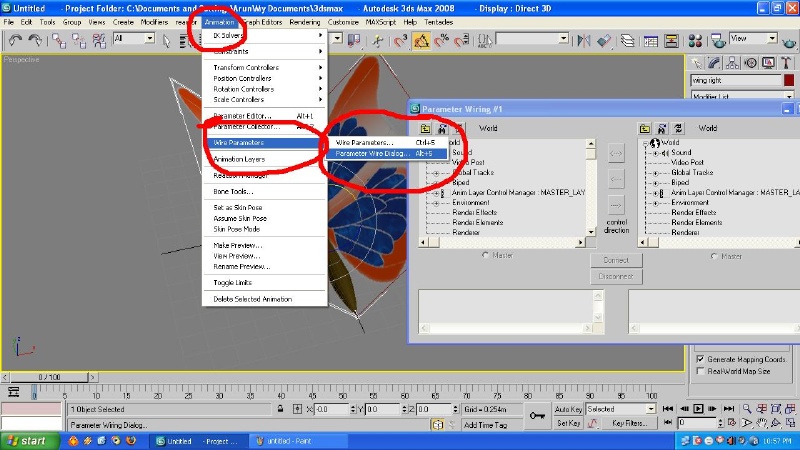

6.- Now you can se the Butterfly fluttering only one Wing, we had todo create the same animation for the second Wing also. Let me show you how. Enable the parameter wire dialogue from animation>wire parameters.

https://foro3d.com/attachment.php?at...1&d=1244581483

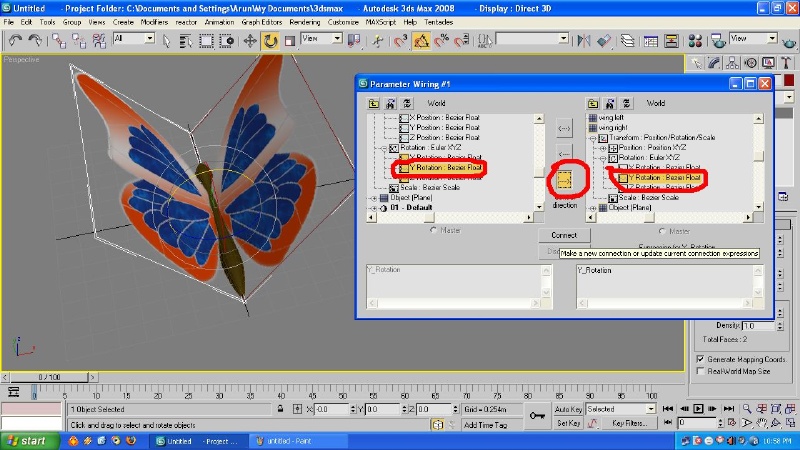

7.- in the window select the y rotation parameter for each Wing you created, you can find it in the object list available in the left and right panels. And then click the arrow Marks in the middle of the panel and click connect. WoW. Your Butterfly is fluttering its Wing. Is that easy?
https://foro3d.com/attachment.php?at...1&d=1244581483
note: if its not working try todo use the other two arrows available there.

Have a great day.

By magic wand.
